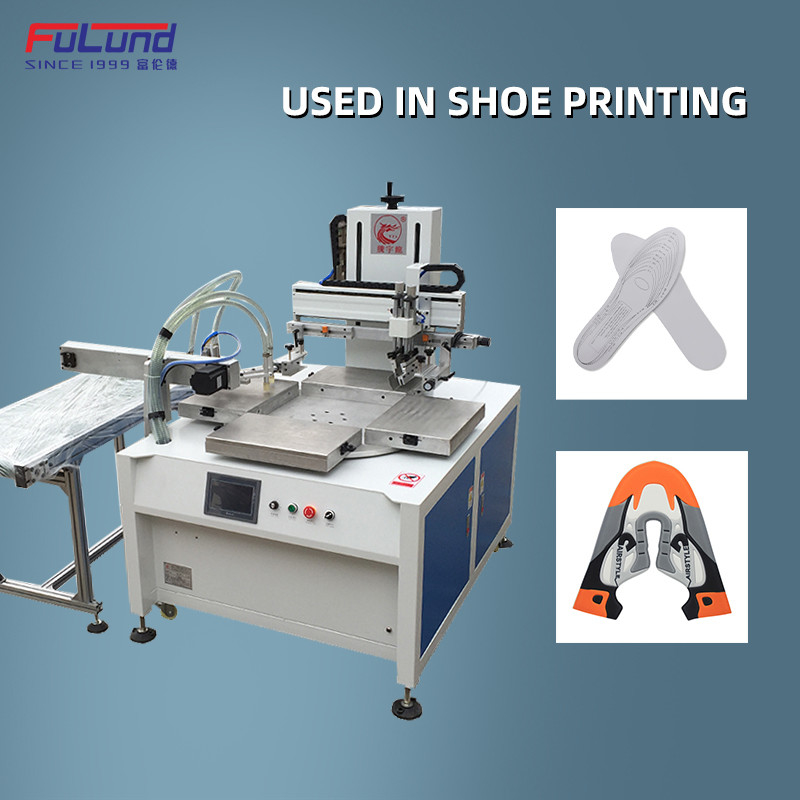

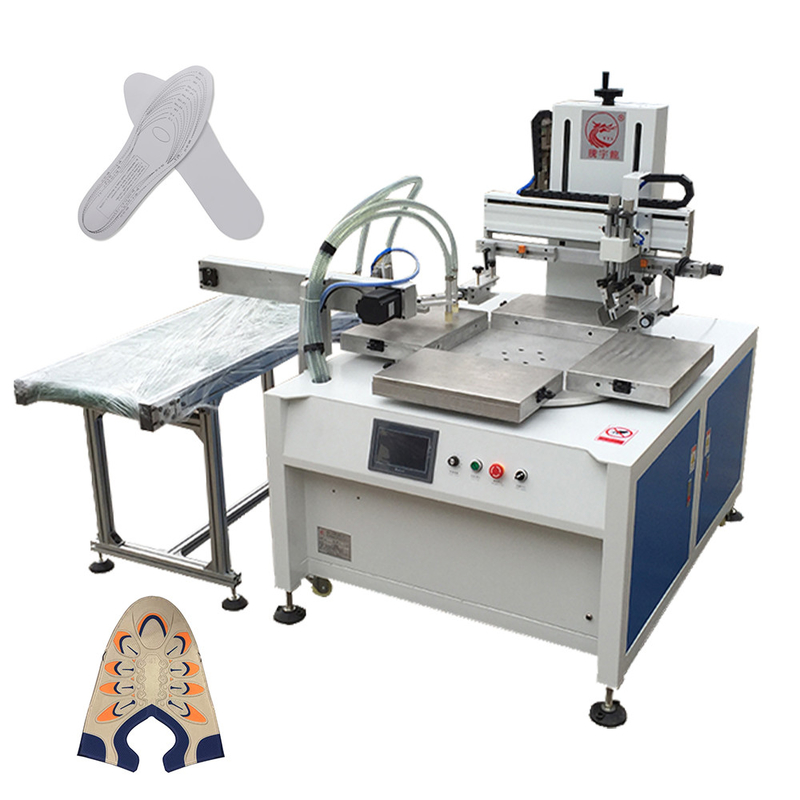

CE OEM Factory best price Of Shoes Sole Screen Printing Machine
Fulund screen printing machine application range: all kinds of plastics, cosmetics, packaging boxes, metal plates, scale plates, acrylic, plexiglass, electronic products, household items, stickers, leather transfer paper. Various types of cups, barrels, glass, baseball bats, wooden boards, etc. It can make the most beautiful and high-quality printing on flat and curved objects.
Scope of application:

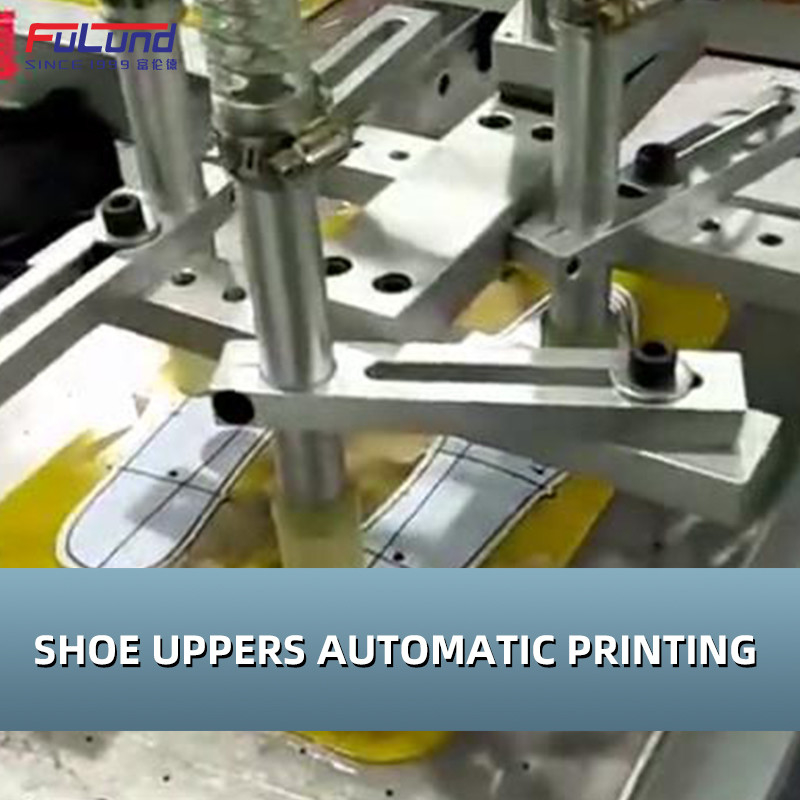

Widely use in the printing of gloves, insoles, shoes upper, mid-sole, bags and other industries , print the position line, mark line and other various shape of cut-parts .
Features:
1, Automatic printing, automatic receiving, can stack according to the setting quantity, no need manual count and can packaging directly.
2, Manual feeding material , suit for any shape material, broad scope.
3, Positioning rapid, change printing plate easily, simple to operate.
4, Reduce manual printing and receiving process, workers only need put the material, high efficiency, 2 Seconds one time, the efficiency is 1.5 times of the traditional process.
| Model No. |
Machine measure(mm) |
Wood case measure(mm) |
N.W/ G.W (kg) | Capacity |
Max printing size |
| FLD-688C | 1740*1500*1530 | 1830*1570*1650 | 450/550 | 1500times/hour | 450*300mm |
| Voltage | Air pressure | Power |
Printing thickness |
Printing platform |
|
| 220V | 4.5~6kpa | 6.9kw | 0~50mm | 600mm |
Contrast:
| Capacity | Feeding way | Receiving way | Printing way | Operator | |
| Traditional machine | 800times/hour | Manual | Manual | Manual put label | 1 |
| FLD-688C | 1500times/hour | Manual | Automatic | Automatic put label | 1 |
Conclustion:Use FLD-688C, four-station, factory can become automatic, one person can operate one set machine, workers only need put the material, no need manual print, can reduce operator fatigue, higher efficiency, can save more labor cost. For example: Monthly labor cost $547, the label cost can save 547x12x1.5=$9846 one year.
